“Expanding the projection surface naturally broadens the range of use.”
— Jaeyoung Park, Visual Display Business, Samsung Electronics
With the right projector, you can enjoy a 100-inch screen in compact home spaces. The portability of smaller projectors also enable more flexible entertainment spaces. Turning a living room into a theater or a bedroom into a concert hall — that’s an experience you don’t come back from.
Samsung Electronics is redefining home entertainment with The Premiere 5, introducing a new product identity by expanding the projection surface from walls to floors and tables and incorporating touch Interaction.1
Samsung Newsroom spoke with Seung-Hyun Moon from the New Projector Lab, Yuri Kim from Innovative Product Planning and Jaeyoung Park from Lifestyle Product Marketing — all part of the Visual Display (VD) Business at Samsung Electronics — to learn more about how the largest in-home touchscreen came to life.
▲ (From left) Yuri Kim, Jaeyoung Park and Seung-Hyun Moon from the Visual Display Business at Samsung Electronics
Ultra-Short Throw, Ultra-Clear Picture in an Ultra Cute Form
A compact ultra-short throw projector equipped with advanced triple laser technology as well as touch interaction, The Premiere 5 transforms everyday spaces into immersive environments with vivid picture quality. The device can display an image up to 100 inches from just 17 inches away2 when aimed at a wall and up to 40 inches when projecting onto the floor or tabletops.

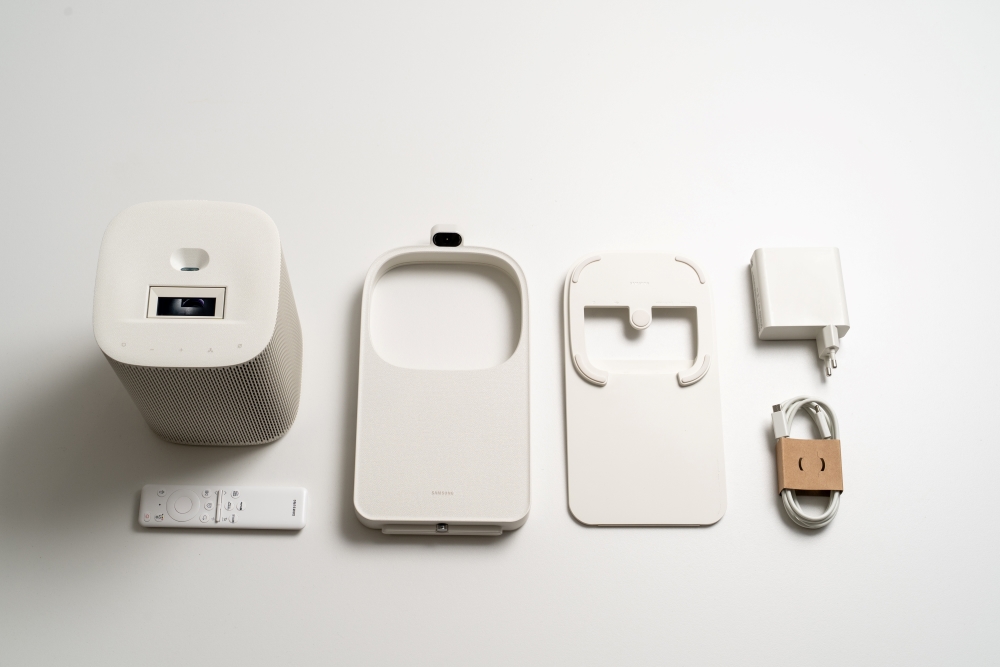

▲ (From left) In the box: The Premiere 5, SolarCell Remote, front and back sides of the Touch Stand, power adapter and cable
“We applied ultra-short throw technology so the projector can still deliver a large screen even when placed very close to the wall,” said Moon. “A specially designed aspheric mirror bends the light path by more than 90 degrees, allowing light to spread evenly across the surface.”
“Thanks to the short projection distance, The Premiere 5 can be easily set up in confined spaces,” he added. “Another key strength is that it minimizes shadow interference — a common issue with conventional standard (or long) throw projectors.”
Triple laser technology uses red, green and blue — the three primary colors of light — to produce bright, vivid images.
“Traditional lamp-based or single-laser projectors rely on passing light through a color wheel to generate color,” said Moon. “In contrast, The Premiere 5 uses pure red, green and blue light sources from the start to deliver higher color purity and greater optical efficiency.”
▲ (From left) The top projection unit features a dual-mirror structure with an aspheric mirror, enabling ultra-short throw projection in a flat design. The camera unit uses 3D ToF technology for auto keystone and auto focus.
The two cameras built into the projector use 3D time-of-flight (ToF) technology3 to automatically detect the shape and distance of the projection surface and make adjustments in real-time. Auto focus keeps the image sharp, whereas auto keystone corrects trapezoidal distortion for a properly aligned rectangular image. As a result, users get an optimal viewing experience without needing to make any manual adjustments.
“3D ToF works by projecting infrared light onto the wall and calculating the time it takes to bounce back, allowing the projector to read the shape of the wall in real time,” he continued. “Thanks to this, the image can be instantly recalibrated even if the projector is accidentally moved during use.”
▲ Seung-Hyun Moon, New Projector Lab, Visual Display Business, Samsung Electronics
Touch Interaction — The Projector for Smartphone Habits
Touch interaction is a key feature that defines The Premiere 5.
“When projecting onto the floor, the screen becomes very close to the user,” said Kim. “The Premiere 5 was developed with the idea that touch is the most intuitive way to interact with screens — especially for users who are already familiar with smartphones and tablets.”
▲ Yuri Kim, Innovative Product Planning, Visual Display Business, Samsung Electronics
Touch interaction on The Premiere 5 uses infrared (IR) image sensors. An IR laser at the bottom of the stand and an IR camera at the top of the projector operate simultaneously to generate a calibration pattern, creating a map of the screen. When a user touches the surface, the upper sensor detects the reflected IR signal from the touch point and compares it with the existing map to determine the exact touch location.
“For precise touch recognition, we created and refined an error map across the entire IR range and went through countless rounds of calibration,” said Moon. “We worked extensively to ensure touch accuracy.”

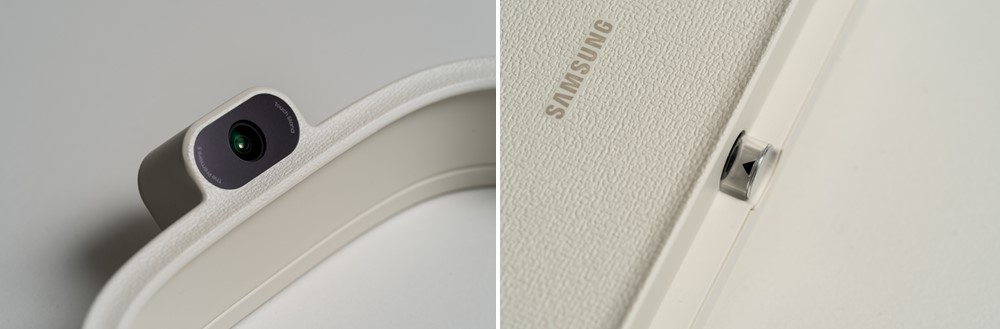

▲ (From left) The IR camera and the IR laser
To activate touch interaction, users simply attach the front and rear stands to the main unit, lay it horizontally. The projector automatically switches to floor projection mode and enables touch. The magnetic connectors on the stands snap into place instantly, making assembly easy for anyone.
The key to the stand design is ensuring both easy assembly and stable support for the sensors and main unit so the touch feature functions smoothly.
“Before arriving at the current Touch Stand design, we went through numerous prototypes — continuously refining it to address shortcomings in both structure and usability,” said Park. “We were relentless in our pursuit of a safe, stable and effortless assembly.”
▲ Jaeyoung Park, Lifestyle Product Marketing, Visual Display Business, Samsung Electronics
Kim also recalled the intensive development process behind the Touch Stand.
“We experimented with countless attachment methods including detachable camera modules and cable connections,” she reflected. “There were easier ways to do this from a product development perspective, but our focus on user convenience helped us arrive at an optimal design. Ultimately, product development is driven by the user.”
Towering Design Requirements — Stacking Form and Function
“The process of stacking various parts in layers was simultaneously a design trial and technical challenge.”
— Seung-Hyun Moon, Visual Display Business, Samsung Electronics
One of the standout features of The Premiere 5 is its vertical tower design.
“Unlike conventional projectors, ultra-short throw projectors emit light at a wide angle. To avoid obstructing the projection path, part of the main body is typically recessed in a valley structure,” said Park. “In contrast, The Premiere 5 uses a dual-mirror structure that creates a flat top for a cleaner, more refined appearance.”

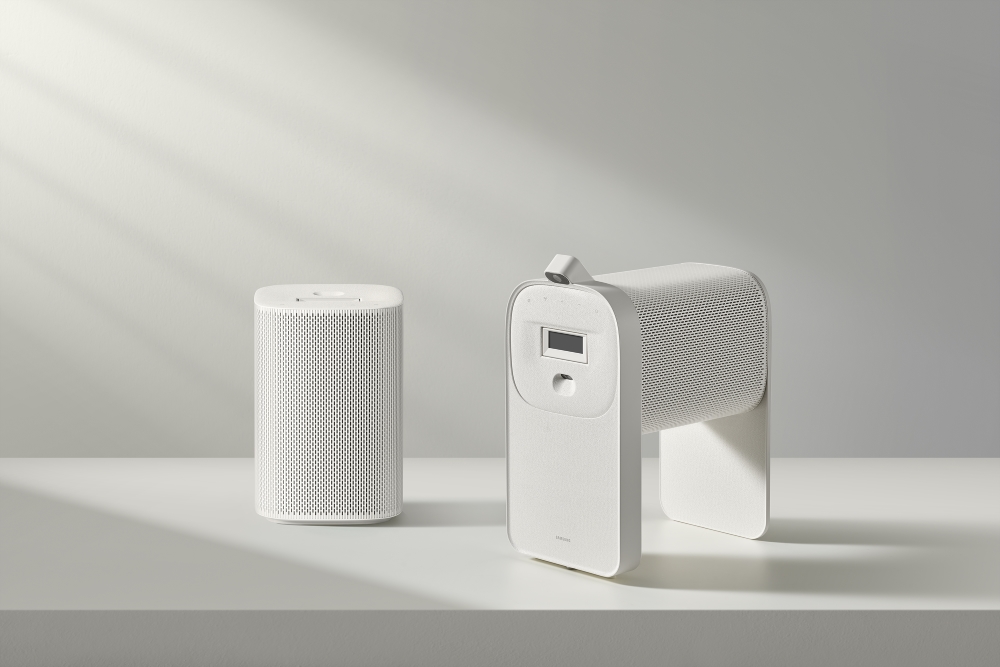

▲ The Premiere 5
“We aimed for a design that would blend naturally into any space and still look cohesive even when moved around — like a beautiful vase placed on furniture,” said Kim. “By shifting from the traditional horizontal form to a vertical design, we also improved space efficiency.”
Focus was placed not only on design but also on sound quality. Featuring 10W stereo speakers and Dolby Atmos support, The Premiere 5 delivers a powerful, rich sound. When paired with the Music Frame speaker via Q-Symphony,4 the projector creates an even more immersive audio experience.
“A cinematic experience is defined by both picture and sound quality, meaning high-quality audio is not optional — it’s essential,” said Park. “While delivering rich sound was a challenge given the spatial constraints, our team’s collaborative efforts allowed us to achieve both aesthetic design and impressive audio.”
“Ultimately, product development is driven by the user.”
— Yuri Kim, Visual Display Business, Samsung Electronics
“While horizontal projectors allow internal components to be distributed more broadly, the vertical structure of The Premiere 5 required stacking various parts in layers,” said Moon. “Incorporating premium features — such as ultra-short throw, triple laser technology, high-quality speakers and an internal sound chamber — meant every component had to be smaller and efficiently placed. The process was simultaneously a design trial and a technical challenge.”
Setting a New Standard for Projectors
The Premiere 5 brings innovation to projector use by introducing the concept of floor projection.
“By combining the projector with a Touch Stand, we extended the projection surface down to the floor,” said Park. “Expanding the projection surface naturally broadens the range of ways The Premiere 5 can be used.”
For example, users can mirror mobile content and project it onto a table — turning the surface into an interactive touchscreen. They can also enjoy a richer home entertainment experience through Samsung TV Plus, Gaming Hub and more.
“We highly recommend this product to those who want to share a large-screen experience with their family,” he added. “Through the ‘Enjoy With Family’ section within the Smart TV features, users can explore a wide range of touch-based content including educational and casual games.”
“Touch is the most intuitive way to interact with screens — especially for smartphone users.”
— Yuri Kim, Samsung Electronics
“I often follow recipe videos on YouTube while cooking at home,” said Park. “When projecting onto the kitchen island, I can play and pause the video with a simple touch — even if my hands are messy.”
He also noted that projecting onto the floor allows for convenient access to Samsung Health and guided workout videos during exercise.
▲ In the kitchen, The Premiere 5 can provide an easy-to-clean screen so you don’t have to worry about spills and accidents.
“My goal is to deliver a new level of immersion — one that makes users feel as if they’re truly inside the screen, not just watching it,” said Kim, describing her aspirations for the future.
“The new value of projectors lies in their ability to transform any surface into a screen,” added Park. “We will continue to overcome the limitations of projection surfaces through innovation.”
The Premiere 5 stays true to the essence of a projector while unlocking new possibilities through touch interaction. With the Premiere series, Samsung continues to push the boundaries of innovation and elevate everyday screen experiences.
▲ Jaeyoung Park, Seung-Hyun Moon and Yuri Kim of the Visual Display Business at Samsung Electronics say The Premiere 5 now feels like family.

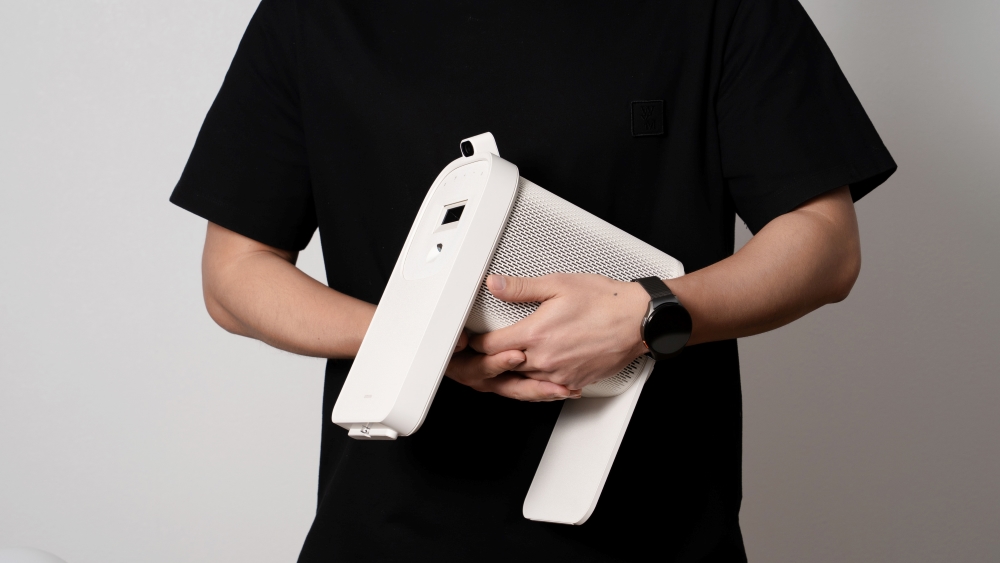

▲ Engineers say it’s safer to hold The Premiere 5 with both hands when moving the device.
1 Touch interaction is only available with the Touch Stand connected. Touch Interaction may not function properly depending on set up and the condition of the surface projection surface.
Touch interaction support may vary by app, some apps may not support the feature. Some functions may be limited when using the feature.
2 Screen sizes for each projection distance may differ depending on the installation environment.
3 Time-of-Flight (ToF) technology is a depth-sensing method that measures the time it takes for a signal — usually infrared light — to travel from a source to an object and back to a sensor.
4 Q-Symphony is audio technology that allows a compatible Samsung TV or projector and a compatible Samsung sound device (such as a soundbar or the Music Frame speaker) to connect for a holistic listening experience.
